RGB skew cor

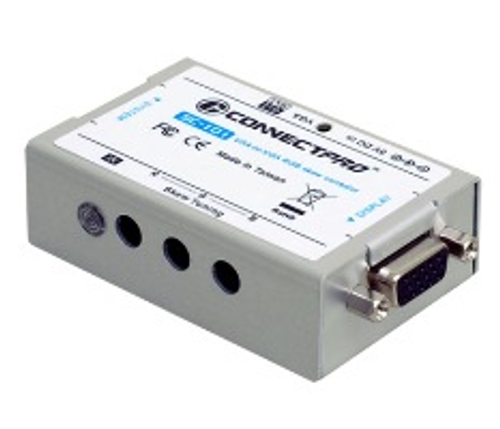

Product Overview In this new compact style, the SC-101 VGA RGB Skew Corrector allows a customer t
#video#vga#RGB#skew#校正#GAIN#switch
Product Overview
In this new compact style, the SC-101 VGA RGB Skew Corrector allows a customer to adjust RGB skew for better Video quality. It will have an optional IR remote, and come standard with advanced tuning technology to help get the finest video quality.
Features & Benefits
‧ Easy to install for better RGB quality
‧ Easy to adjust VGA RGB (Red, Green, Blue) Skew separately by using
a plus/minus screwdriver
‧ Support fine video quality up to 1920 x 1200 resolutions
‧ Built-in Easy Skew control via IR remote controller
‧ Video source could be PC, DVD player, Video extender, Video Switch,
Video Splitter, or any VGA video source
‧ VGA GAIN x 1 or x 2 selectable
‧ Aluminum metal construction
‧ LED power / video indication confirms correct operation
Technical Specs
In this new compact style, the SC-101 VGA RGB Skew Corrector allows a customer to adjust RGB skew for better Video quality. It will have an optional IR remote, and come standard with advanced tuning technology to help get the finest video quality.
Features & Benefits
‧ Easy to install for better RGB quality
‧ Easy to adjust VGA RGB (Red, Green, Blue) Skew separately by using
a plus/minus screwdriver
‧ Support fine video quality up to 1920 x 1200 resolutions
‧ Built-in Easy Skew control via IR remote controller
‧ Video source could be PC, DVD player, Video extender, Video Switch,
Video Splitter, or any VGA video source
‧ VGA GAIN x 1 or x 2 selectable
‧ Aluminum metal construction
‧ LED power / video indication confirms correct operation
Technical Specs
| Functional | |
| Power supply | 5V DC adaptor |
| Power on LED | Green |
| VGA in EDID | Orange |
| Resolution | Up to 1920 x 1200@60 Hz |
| Connectors | HDB-15 Female x 2 |
| Mechanical | |
| Height | 22 mm ( 0.87 inch ) |
| Width | 45 mm ( 1.77 inch ) |
| Depth | 70 mm ( 2.76 inch ) |
| Weight | 70 g ( 0.15 lb ) |
| Certification | |
| FCC, CE | |
-
