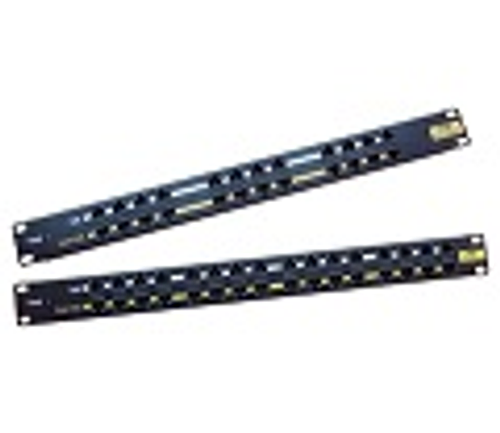

Passive POE Panel 12/16 ports(POEP1X01)

FEATURES
l          Economic POE Solution
l          Detect output power (30w MAX)
l          Flexible power (DC: 24V or 48V)
l          Current protection (650Ma +15%-10%)
l          For 19” Rack

12 port (16 port) x RJ45 sockets are ranked by two horizontal columns. The upper is for “Data” _ 1/2 & 3/6 are transmitting data and 4/5 & 7/8 are not working. The under RJ45 socket is to deliver data and power: 1/2 & 3/6 transmitting data, 4/5(+) & 7/8(-) for power. Passive PoE is composed of 12 (16) sets of RJ45 sockets and one 48V DC power jack. Input power requests 120W or more AC-DC power converter. The input DC hole diameter is Ф2.1 and the other end OD is Ф5.5.

Each socket provides protection against short overflow (current protection 650mA +15%-10%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. The recommended formula for AC-DC power converter is：10W per RJ45 set (1 set = 2 x RJ45 sockets).  For example, 12 x 10W = 120W for 12 port Passive PoE panel. 16 x 10W= 160W for 16 port Passive PoE panel.

The configuration size of panel is：1U (height), 19” (width) and 22mm (thickness), as is available to answer market demand and convenient to be installed directly.

SPECIFICATIONS

l          Input: 100-240V AC 50/60Hz

l          Output: 48V 120W (Min)

l          Data: 1/2&3/6

l          Power: 4/5+ & 7/8- (48V)

l          Data In: Connects PC/HUB/Switch

l          Weight: 12 Port 0.68Kg / 16 Port 0.7Kg

l          Dimensions: 482.6mm×44.3mm×21.8mm

l          Case of material: metal work material

l          Ethernet Cable: TIA/EIA 568 Cat. 5

l          Data rate: 10/100Mbps

l          Connector: RJ-45

l          Operating Temperature: 0°C ~ 40°C

l          Storage Temperature: -40°C~+70°C

l          Operating Humidity: 10%~80%RH

l          Storage Humidity: 5%~90%RH

l          Certification: CE

HOW TO ORDER

 POEP1201A

12: 12 Ports

16: 16 Ports

0: without Power Adaptor

1: with 120W Power Adaptor

2: with 160W Power Adaptor

A: US type
