Sole Attaching M-C

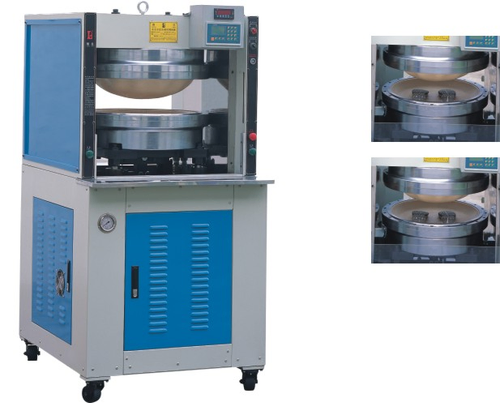

LC-298A Hydraulic Sole Attaching Machine 液壓多用壓底機 FEATURES: >Adopt hydraulic press syst
液壓多用壓底機
FEATURES:
>Adopt hydraulic press system. It can adjust pressure according to different need of sole. The average tension achieve 6 kg/cm2.
>You don't need to make traditional pressing mold, so it can cost down.
>The operation board uses standard diagram, simple opertion, correspond with CE standard.
>One machine can make three kinds of press, saving money and labor cost.
SPECIFICATIONS
|
Model |
LC-298A |
|
Press range |
0-25kg/cm2 |
|
Working range |
550mm |
|
Product efficiency |
2400/8h |
|
Power |
3HP |
|
Work oil |
Water-soluble oil |
|
Machine Size |
850 x 1100 x 1740mm |
|
Packing Size |
950 x 1200 x 1940mm |
|
N.W/G.W |
1800kgs/1950kgs |
-
