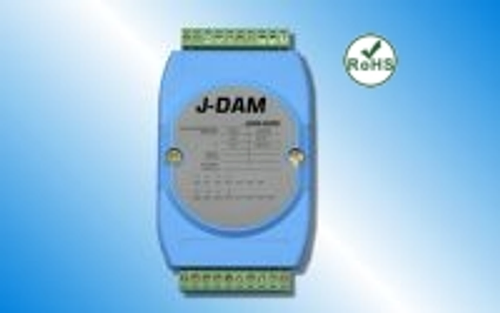

JDAM-9050D遠端控制模組

Specifications

Interface : RS-485, 2 wires

Logical level 0 : +1V Max

Speed (bps) : 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K

Logical level 1 : +3.5V ~ +24V

Output channels : 8 non-isolated output channels

Input counter : Counting pulse from channel 7 input

Input channels : 7 non-isolated input channels

counter frequency : 100Hz Max

Output characteristic : open collector transistor

Length : 16-bit(0~65535)

Output current sink : 30mA max

Status indicator : 15 input / output status LED display

Max output Load voltage : 30Vdc

Internal watchdog timer  : 150msec

Max power dissipation : 300mW

Power requirement : 10Vdc ~ 30Vdc
