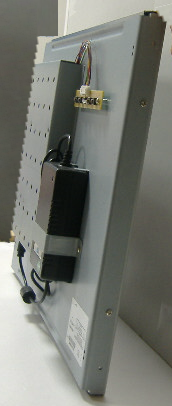

open frame

TFT-LCD Monitor in SKD Model HOP-15A HOP-17A HOP-19A LCD Display 15” TFT-LCD 17” TFT-LCD 19” TFT-LCD Pixel Pitch 0.297(H) x 0.297(V) mm 0.264(H) x 0.264(V) mm 0.294(H) x 0.294(V) mm Max. Resolution XGA 1024x 768 SXGA 1280x 1024 Display area 304.1(H) x 228.1(V) mm 337.92(H) x 270.34(V) mm 376.32(H) x 301.056(V) mm Display color 16.2 M COLORS Contrast Ratio 350 : 1 (Typical ) 500 : 1 (Typical ) 1000 : 1 (Typical ) Brightness 260 cd/m2 300 cd/m2 300 cd/m2 Response Time Tr=5ms, Tf=20ms Tr=3.5ms, Tf=1.5ms Tr=1.2ms, Tf=3.8ms Viewing Angle R/L/U/DWide Viewing Angle : 160/135 Wide Viewing Angle : 160/160 Wide Viewing Angle : 170/170 Input Signal R/G/B Analog Scan frequency Horizontal: 31.5 to 81.1 KHz / Vertical : 56 to 76 Hz Plug & Play DDC 2B Power Management VESA DPMS Compatibility of VGA VESA VGA / SVGA / XGA / AC/DC Adapter Input : AC 100~240,50~60HZ; Output: DC 12V/3A Power Consumption 22W( Max.) / Standby under 4W 45W( Max.) / Standby under 4W Operation Environment Temperature 0~60℃, Humidity: Less than 85% OSD Control Button Power, Auto, Menu, Up, Down Optional Resistive / Capacitive Touch screen, Glass Volume 330mm(W)*260mm(H)*60mm(D) 360mm(W)*298mm(H)*43mm(D) 400mm(W)*325mm(H)*43mm(D) Weight N.W. 2.8kg 4.2kgs 4.5kgs * Specifications and design are subject to change without prior notice in the interest of product improvement.
