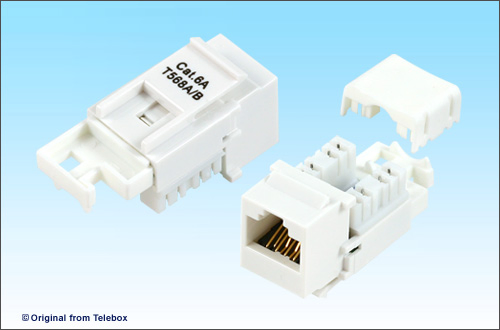

Cat.6A UTP Mini KSJ
Specification: Qualified Cat.6A/Class EA (10G/500MHz) TIA/EIA-568-B.2-10 draft 3 ISO/IEC 11801 2n
#Cat.6A#Jack#KSJ#Keystone#Mini#UTP#punchdown
Specification:
Qualified Cat.6A/Class EA (10G/500MHz)
TIA/EIA-568-B.2-10 draft 3
ISO/IEC 11801 2nd Edition
EN 50173 2nd Edition
IEC 60603-7
Electrical:
Current Rating: 1.5Amps
Insulation resistance: 500 Milion ohms minimun
Contact resistance: 20 mili ohms maximum
DC resistance: 0.1 ohms maximum
Mechanical:
Plug insertion life: 750 Cycles minimun
Plug & Jack contact force: 100 Grams minimun
Using FCC-Approved Plug
Plug retention force: 30 lbs minimun
Temperature: -40ºF to 150ºF (-40ºC to 68ºC )
Physicals:
Housing: PC, UL 94V-0
PCB Module:
• Insertion: PBT UL94V-0
• Contact: Ø0.46mm phosphor bronze gold over nickel plating
• IDC: PC, 94V-0
• PCB: FR4 1.0mm thickness
• Cap: PC, UL94V-0
Cable holder: PC, UL94V-0
IDC connector suitable for 110 punch down and Krone tool
Qualified Cat.6A/Class EA (10G/500MHz)
TIA/EIA-568-B.2-10 draft 3
ISO/IEC 11801 2nd Edition
EN 50173 2nd Edition
IEC 60603-7
Electrical:
Current Rating: 1.5Amps
Insulation resistance: 500 Milion ohms minimun
Contact resistance: 20 mili ohms maximum
DC resistance: 0.1 ohms maximum
Mechanical:
Plug insertion life: 750 Cycles minimun
Plug & Jack contact force: 100 Grams minimun
Using FCC-Approved Plug
Plug retention force: 30 lbs minimun
Temperature: -40ºF to 150ºF (-40ºC to 68ºC )
Physicals:
Housing: PC, UL 94V-0
PCB Module:
• Insertion: PBT UL94V-0
• Contact: Ø0.46mm phosphor bronze gold over nickel plating
• IDC: PC, 94V-0
• PCB: FR4 1.0mm thickness
• Cap: PC, UL94V-0
Cable holder: PC, UL94V-0
IDC connector suitable for 110 punch down and Krone tool
TA896AUC-XXX Cat.6A UTP Mini Keystone Jack
-
